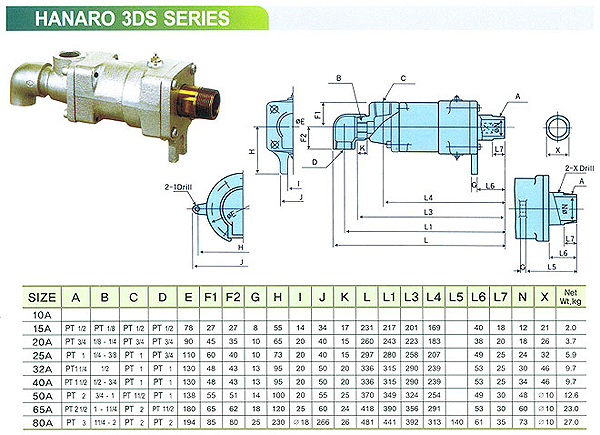

3DS Series shows less resistance to high-speed rotation and economically efficient. AL alloy (PTFE processed), copper alloy, stainless wire can be used on the surface contacting the body parts thus allowing stronger corrosion resistance. Lighter, smaller sized products are also available.
¡á Service Conditions
Max. Press. : 15kg / cm2G
Max. Temp. : 180¡É
Max. Rev. : 15A-40A 300rpm, 50A-80A 150 rpm
Fluid : Steam, Water, Warm Water, Oil, Air, Heating Medium
Rotary Joints
