Rotary Joints ¡á Products > Rotary Joints > For Cooling Medium

For Cooling Medium

  • Lubrication free and for high rotation purpose
  • Rotary joints for cooling water and refrigerant fluid

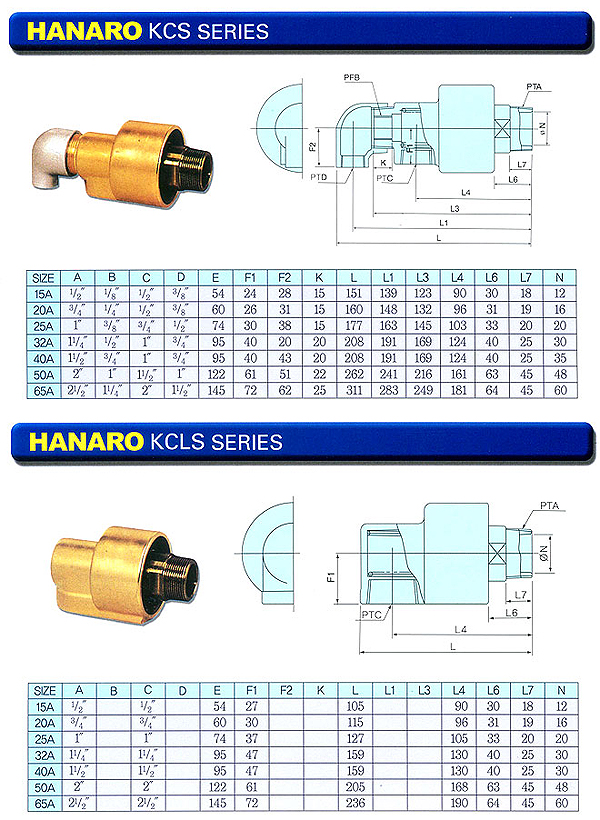

  • KCS Series

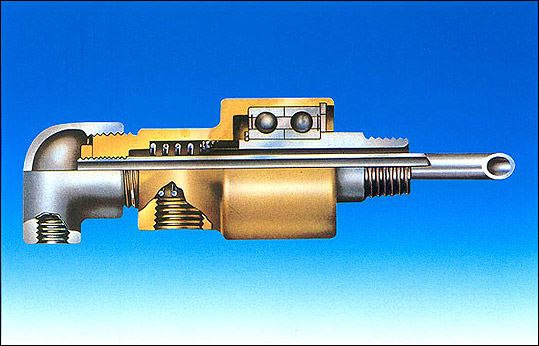

This series (KCS Series) is a product designed specifically for the easy maintenance and long-term durability. This economic product is particularly recommendable for high-speed rotation. The body parts have different types such as products made with brass casting and lightweight products made with AI alloy.

¡á Service condition

  • Fluid : Water, oil, air
  • Max. Temp : 100¡ÆC (180¡É)
  • Max. Press. 10kgf/cm2
  • Max. Rev. : 6A~25A : 15000rpm, 32A~50A : 1000rpm
