Rotary Joints ¡á Products > Rotary Joints > For Steaming Purpose

For Steaming Purpose

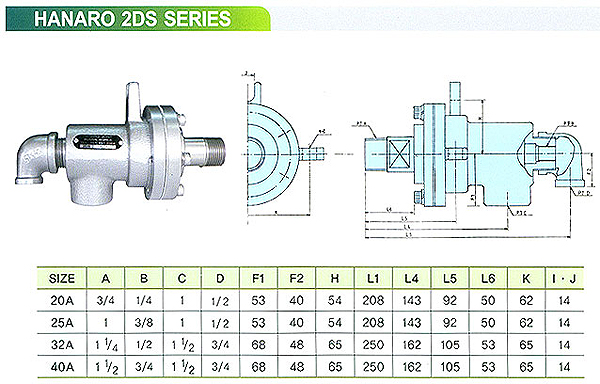

¡á 2DS Series

HA 2DS SERIES has low resistance to rotation as lubrication free product. It is easy to repair when abrasion occurs and designed particularly suitable as heating medium.

¡á Service Conditions

  • Max. Press. : 15kg / cm2G
  • Max. Temp. : 300¡É
  • Max. Rev. : 10A-25A 300rpm, 32A-85A 150 rpm
  • Fluid : Steam, hot water, heating medium, cooling water, oil, air
